A guide to cover your layout safely without damage and protect from dust!

Cheap way to protect your layout

Dust Cover

Home Return to top of page

Supply list

Old metal wire coat hangers or poundland plastic covered wire coat hangers





Price guide:-

Coat Hangers  10 for <£2

Decorating sheet 2 x 12’ x 9’ for £2.30

FLUSH HINGE 51 X 25MM 2 PACK for £0.59


Source:- Decorating suppliers, Chain stores, Wilko, Pound shops, Screwfix.



NOTE:-

Buy the CHEAPEST dust sheet you can!

The cheaper it is, the thinner it is!

An anatomy

We all know what a bind keeping the track clean is, but how about eliminating the need? This won’t stop dirt accumulating while you run the layout, but it will eliminate the collection of dust for the other 90% of the time. Just think how many hours a day the layout is exposed when your not there!

It would be great to seal it in an air tight cabinet, or just covered with some sheeting, but both of these are impracticable.

Or maybe not………

Back to HOW TO

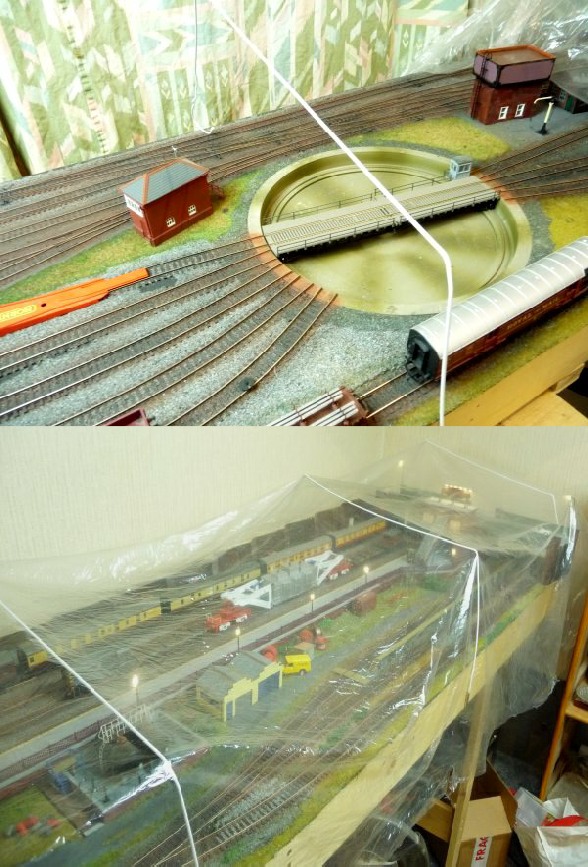

Throwing a tarp over the layout and crushing all your hard work and scraping all the delicate posts and people off when you pull the sheet off, is no joke. But what if the sheet was as light as tissue paper? How about putting a frame over the layout for the sheet to rest on?

Construction


Use a pin punch (or nail) to knock out the pins from the hinges. Fix to the side of the front of the layout approximately ever 2ft (600mm). Either use the hook as a landing point, or if the other side is accessible, use another hinge socket, if its a wall, simply drill a small hole in line with the front socket.

Untwist the coat hanger and straighten the two tight bends, cut the spiral off the straight end. If your not using the hook end as a landing leg, straighten it out.

You will need some tough pliers/cutters to cut the wire, if it is beyond those that you have, cut the wire with a Dremel disk or a junior/hacksaw.


A coat hanger will give a tall support for 2 feet wide and a lower support for 2ft 6in wide. If your layout is 3 feet or wider, you will have to join two together else find a different source of wire that is longer (chain link fence support wire)


Ensure the wire is a snug fit inside the hinge tube

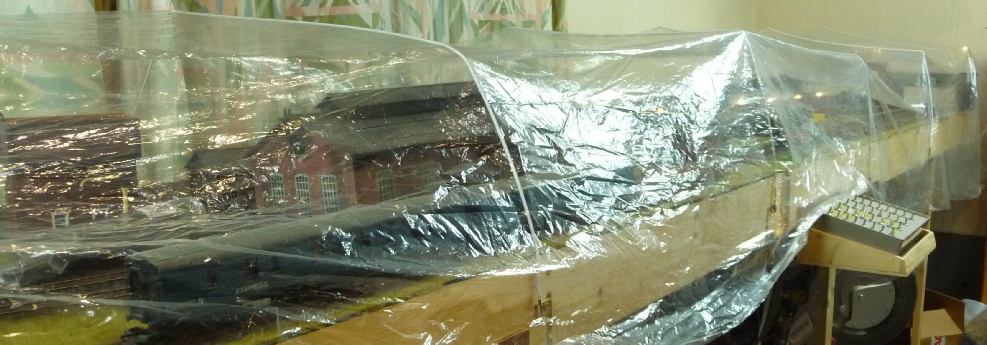

Some sheets are 9 feet wide, others are 12 feet square. You can cut in half, but don’t get carried away, leave a few feet spare more than the width of the layout, as its needed to give ‘weight’ over the edge to naturally pull the top taught.


If the wire does not suit you, an alternative is to use a copper tube elbow fixed to a wall, you can then insert a copper pipe or round wooden dowel in the end sticking out from the wall and it will self support. A deep wooden block with a hole drilled in it the same size as a dowel would also work.
